My Clear Bag Sealing Machines
Manufacturer of PP Creasing Machine, Pocket Sealing Machine, Center Sealing Machine, Spine Welding Machines, Ultrasonic Sealing Machines & High Frequency P.V.C Welding Machines.

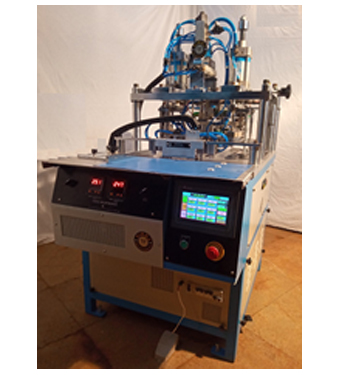

VWPPMCB - PLC Controlled High Speed My Clear Bag/ Button Bag Machine.
SPECIFICATIONS
| Electric System | 230 V AC Single Phase Supply. |
|---|---|
| Left & Right Seal Timers | 0-99 sec. |
| Press | Pneumatic |
| Maximum Indexing Length | 485 mm |
| Maximum Extraction Length | 570 mm |
| Controls | PLC |
| Dimensions (H) x (W) x (D) | 55" x 39" x 72" |
| Weight | 450 Kgs. |
Salient features and controls
| Salient Features | Controls |
|---|---|
| PLC Controlled Logic with HMI. | Single Cycle & Auto Modes available. |
| Double to triple increase in production compared to manual or other semiautomatic machines | Highly Accurate Temperature Control function provided on HMI. |
| Both side Auto Fold and Seal at same time. | PLC Controlled 7 Digit Production Counter |
| Minimum production of 14 pieces & Maximum production of 21 pieces per minute, subjective to the operator speed & material thickness. | Batch counting option provided. |
| Single mode for operators to adjust/synchronize with machine. | Adjustable Indexing and Extraction Lengths. |
| Variable speed Auto mode, for max production & minimum rejection. | ELCB Control Circuit Breaker for heater. |
| Material placement gauges & Operator Friendly Control Systems. | Filter Regulator Lubricator Unit (FRL). |
| Accurate Die Leveling System | Up and Down Speed Controls |
Note: Due to continuous up gradation specifications are bound to change without prior notice.
