VW1P

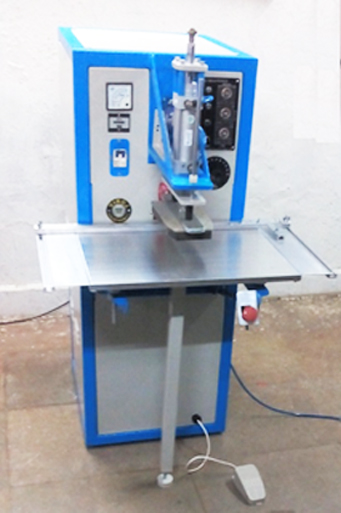

VW1P- This compact pneumatically operated machine is best suited for light duty jobs & is very easy to operate.
Applications: I- card Holder, pass Book & F.D. covers, Raincoat, Files & Folders etc.
Specification
| SPECIFICATION | VW1P |
|---|---|
| H.F. Output | 1.2 KW |
| O/P Frequency (MHz) | 27.12 |
| I/P Power | 2.5 KVA at 240V, 50 Hz Single Phase AC |
| Oscillator Valve | 833A |
| Preseal Timer | 0-10 sec |
| Weld Timer | 0-10 sec |
| Cool Timer | 0-10 sec |
| Arc Suppressor | Solid State |
| Lamp | 100Watts 230Volts |
| Welding Capacity in Sq. cm. consolidated on 1mm thick flexible PVC | 35" |
| Compressed Air Requirement in C.F.M | 3 |
| Welding Press Stroke | 75 mm |
| Press | Pneumatic |
| Throat Clearance | 10” |
| Electric Control | Relay based |
| Work Plate Size | 17” x 21” |
| H X W X D | 54”x 20”x 42” |
| Unpacked Weight (approx) | 150 kgs |
