VW2AI

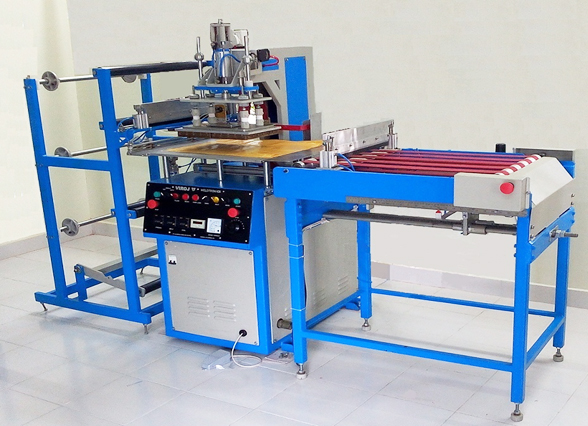

This basic automatic model consists of an Unwinding Stand, Welding Press & an Indexing Unit. Indexing stroke can be easily adjusted. This easy to operate machine with operator friendly controls & features facilitates mass production. This model is also available in 1.2 KW rating.
Applications : PVC pouches, Lamina Morocco Folders, Inner Pages of Photo Albums & Visiting Card Holder, Folders etc.
Specification
| SPECIFICATION | VW2AI |
|---|---|
| H.F. Output | 2KW |
| O/P Frequency (MHz) | 27.12 |
| I/P Power | 5.5 KVA at 240V, 50 Hz Single Phase AC |
| Preseal Timer | 0-10 sec |
| Weld Timer | 0-10 sec |
| Cool Timer | 0-10 sec |
| Oscillator Valve | 2 x 833A |
| Arc Suppressor | Solid State |
| Silicon Rectifier | Single Phase Bridge |
| Welding Capacity in Running InchesFor 2mm thick die | 65 |
| Compressed Air Requirement in C.F.M | 7 CFM |
| Welding Press Stroke | 75mm |
| Press | Pneumatic |
| Throat Clearance | 270mm |
| Work Plate Size(inches) | 18” x 24” |
| H X W X D( inches) | 59” x 84”x 35” |
| Unpacked Weight (approx) | 450 kgs |
Note: Due to continuous upgradation specifications are bound to change without prior notice.
