VW 3.5 AI

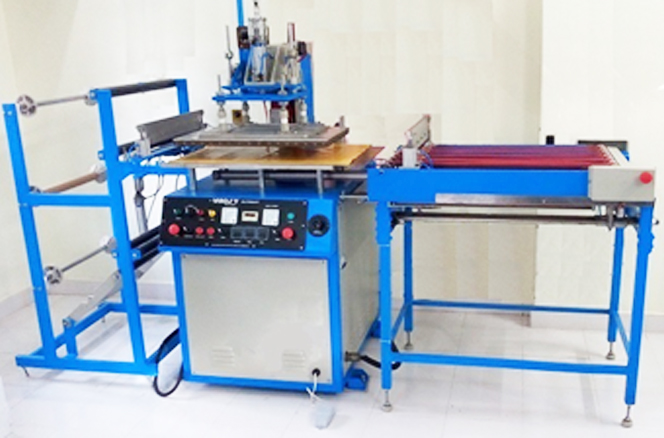

This automatic model targets medium sized jobs. Machine consists of an Unwinding Stand, Welding Press & an Indexing Unit which are pneumatically driven. Indexing stroke can be easily adjusted with the help of alIen key & is easily visible on a scale mounted on the indexing unit. Material Out facility, present in the machine resets it when material roll ends. This easy to operate machine with operator friendly controls & features facilitates mass production. This model is also available in 2 KW rating.
Applications: Lamina Files, Lamina Morocco Folders, Inner Pages of Photo Albums & Visiting Cards Holders, Folders etc.
Specification
| SPECIFICATION | VW3.5AI |
|---|---|
| H.F. Output | 3.5KW |
| O/P Frequency (MHz) | 27.12 |
| I/P Power | 6.5 KVA at 415V,50 Hz Three Phase AC |
| Preseal Timer | 0-10 sec |
| Weld Timer | 0-10 sec |
| Cool Timer | 0-10 sec |
| Oscillator Valve | 7T84RB or eqvt. |
| Arc Suppressor | Solid State |
| Silicon Rectifier | ThreePhase AC |
| Welding Capacity in Running InchesFor 2mm thick die | 110" |
| Compressed Air Requirement in C.F.M | 6 CFM |
| Welding Press Stroke | 3" |
| Throat Clearance | 12" |
| Work Plate Size(inches) | 20"x28" |
| H X W X D( inches) | 65" x 116" x 42" |
| Unpacked Weight (approx) | 600 Kgs. |
Note: Due to continuous upgradation specifications are bound to change without prior notice.
