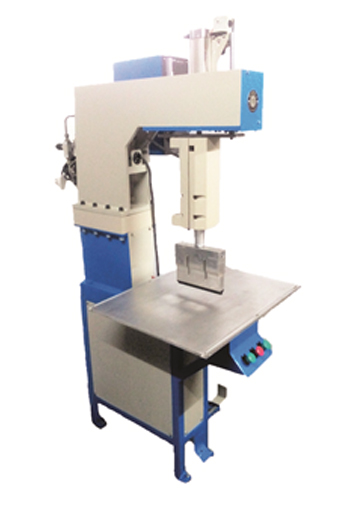

ULTRASONIC MACHINES
TAN 001/ TAN 002/ TAN 003
This robust heavy duty model is manufactured for sealing PP folders to files with a clean finish. PLC Control logic provides accurate control and helps in obtaining higher production. Lesser maintenance and power consumption are additional advantages of the machine.
This state of art machinery with PLC logic provides greater control and more production. The PLC System makes it easier to control the machine with 99% less break down time and “0%” maintenance.
• Integrated timer and counter along with PLC logic results in higher production.
• Solid state logic
• On screen alarm and ready supply gets cut off when
• a. There is no air supply.
• b. Limit switch for sensing the bottom position of die gets operated without air supply.
• MCB for more protection.
• Easy to use material placement gauges.
• Accurate Die Levelling System.
• Filter Regulator Lubricator Unit (FRL).
• Up and Down Speed Controls.
• Operator Friendly Control Systems.
Machines are innovatively designed taking into consideration reliability and safety. These models are also available with PLC Controls.
GENERAL SPECIFICATIONs
Model | TAN001 | TAN002 | TAN003 |
---|---|---|---|
Frequency | 15KHZ | 15KHZ | 15KHZ |
Output Power | 2000W | 2600W | 4600W |
Dimension(mm) | 765 x 900 x 1905 | 765 x 900 x 1905 | 765 x 900 x 2000 |
Weight(approx.) | 300 kgs | 325 Kgs | 400 Kgs |
Input Supply | 230V,10A,50Hz, Single Phase AC | 230V, 15A, 50 Hz Single Phase AC | 230V, 25A, 50 Hz Single Phase AC |
Press | Pneumatic | Pneumatic | Pneumatic |
Air Requirement(CFM) | 4 | 4 | 4 |
Note: Due to continuous upgradation specifications are bound to change without prior notice.
Applications:
PP folder sealing to files, PP Leaves sealing to visiting card albums, PP Box Sealing, PP file sealing, Stationery items, PP leaves sealing to Photo Albums etc.
Features | Controls |
---|---|
Accurate Die Levelling system | Electronically operated Timer |
Operator Friendly Control System | Up and Down speed Controls |
Easy to use material placement gauges | Pilot Lamps for Indication |
Compact Machine Design | Digital Production Cycle counter |
Overload Circuitry | Output Power Control(Optional) |
High Productivity and good efficiency | Analog Control System (PLC optional) |
Rugged machine with advanced technology |
