VW2P/3.5P

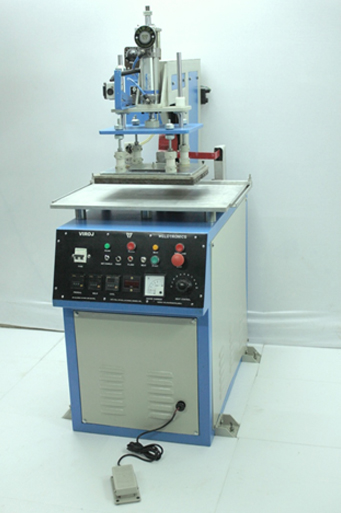

This compact machine with a pneumatic press is robust in operation with operator friendly controls. This machine targets medium size jobs such as seat cover embossing, folders, urine bags, Photo Albums, Visiting card folders, danglers etc.
This 3.5 KW economy range of PLC based Pneumatic HF PVC Welding machine is ideal for large quantity medium pressure jobs such as Inflatable toys , footwear, 2 wheeler seat covers, stationery etc. Has all the advantages of PLC based control such as low maintenance, consistent production, operator friendly controls and lesser breakdown time.
Specification
SPECIFICATION | VW2P | VW3.5P |
---|---|---|
H.F. Output | 2 KW | 3.5 KW |
O/P Frequency (MHz) | 27.12 | 27.12 |
I/P Power | 4.5 KVA at 240V, 50 Hz Single Phase AC | 6.5KVA at 415V, 50 Hz 3 Phase AC |
Preseal Timer | 0-10 sec | 0-10 sec |
Weld Timer | 0-10 sec | 0-10 sec |
Cool Timer | 0-10 sec | 0-10 sec |
Oscillator Valve | 2 x 833A | 7T84RB eqvt. |
Arc Suppressor | Solid State | Solid State |
Silicon Rectifier | Single phase AC | 3 Phase Bridge |
WeldingCapacity in Running InchesFor 2mm thick die | 65 | 110 |
Compressed Air Requirement in C.F.M | 3 | 5 CFM |
Welding Press Stroke | 75 | 75 mm |
Press | Pneumatic | Pneumatic |
Throat Clearance | 11" | 12" |
Electric Control | Relay based | PLC |
Work Plate Size(inches) | 18” x 24” | 20” x 28” |
H X W X D( inches) | 60 x 27 x 38 | 65”x32”x 42” |
Unpacked Weight (approx) | 225kg | 350 Kg |
