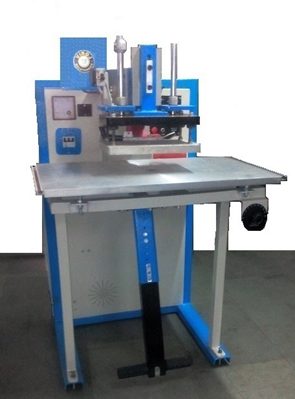

VW 3.5/5
This compact model delivers R.F output at stabilized frequency. It has a shielded Generator. Plug-in relays & timers result in easy maintenance. Also available in 5 KW Versions.
Applications:This machine is best suited for medium size jobs such as seat cover embossing, sealing of danglers, folders, urine bags, photo albums, visiting card folders, etc.
Specification
| SPECIFICATION | VW3.5 | VW5 |
|---|---|---|
| H.F. Output | 3.5KW | 5KW |
| O/P Frequency (MHz) | 27.12 | 27.12 |
| I/P Power | 6.5 KVA at 415V,50Hz Three Phase AC Supply | 8.5 KVA at 415V,50Hz Three Phase AC Supply |
| Weld Timer | 0 -10 Sec | 0 -10 Sec |
| Oscillator Valve | 7T84RB or eqvt. | 7T85RB or eqvt. |
| Arc Suppressor | Solid State | Solid State |
| Silicon Rectifier | Three Phase Bridge | Three Phase Bridge |
| Welding Capacity in Sq.cm consolidated on 1mm thick flexible PVC | 110" | 150" |
| Throat Clearance | 2” | 2" |
| Work Plate Size | 20"x 28" | 20"x 28" |
| H x W x D | 48” X 28” X 54” | 48” X 35” X 63” |
| Unpacked Weight [approx] | 300 kgs | 400 Kgs |
Note: Due to continuous upgradation specifications are bound to change without prior notice.
