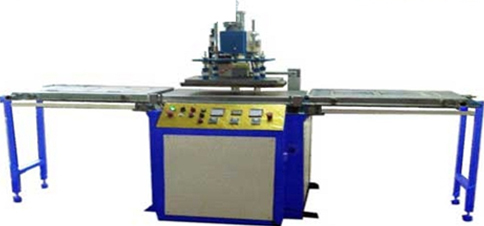

VW5/7ST
A shuttle tray system has left and right sliding trays which act as feeding stations. One tray is loaded while other is being sealed. This technique optimizes production. Shuttle trays also facilitate accurate positioning of products with the help of gauges.The high pressure required for welding is provided by pneumatically driven welded press. HYDRAULIC POWER PACK FOR WELDING CAN BE PROVIDED.
Applications: - : For files, sunvisors, blister to blister packaging (toothbrush), inflatables and for seat cover embossing
Specification
| SPECIFICATION | VW5ST | VW7ST |
|---|---|---|
| H.F. Output | 5 KW | 7 KW |
| O/P Frequency (MHz) | 27.12 | 27.12 |
| I/P Power | 8.5KVA at 415V, 50 Hz Three Phase AC | 12.5KVA at 415V, 50 Hz Three Phase AC |
| Preseal Timer | 0-10 sec | 0-10 sec |
| Weld Timer | 0-10 sec | 0-10 sec |
| Cool Timer | 0-10 sec | 0-10 sec |
| Oscillator Valve | 7T85RB or Equivalent | 7T69RB or Equivalent |
| Arc Suppressor | Solid State | Solid State |
| Silicon Rectifier | Three Phase Bridge | Three Phase Bridge |
| Welding Capacity in Running InchesFor 2mm thick die | 150 sq.cm. | 200 sq.cm. |
| Compressed Air Requirement in C.F.M | 6 CFM | 6 CFM |
| Welding Press Stroke | 100mm | 100mm |
| Throat Clearance | 14 1/4” | 14 1/4” |
| Work Plate Size(inches) | 20” x 28” | 22” x 33 1/2” |
| H X W X D( inches) | 66”x 99 ”x 48” | 68”x 108”x 48” |
| Unpacked Weight (approx) | 550 Kg | 675 kg |
Note: Due to continuous upgradation specifications are bound to change without prior notice.
