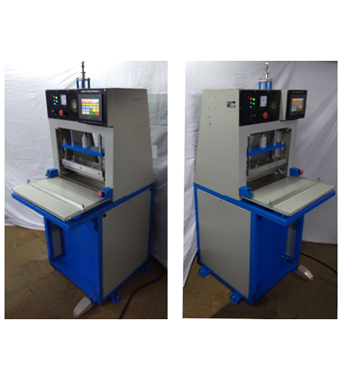

VWPP1P
Application: To form line on 0.4-2mm thick PP Computer Files in order to be folded.
Salient Features / Controls:
• Creasing of Multiple lines with pitch varying from 5mm to 100mm in a single stroke.
• Same Die can be adjusted for different width of creasing, which erases the need to change the Die.
• Very High Pressure Hydraulic Press (Pneumatic Press Optional) with Up and Down Speed Control
• More accurate control over temperature setting in decimal value.
• Integrated temperature controller, timer and counter along with PLC logic results in higher production.
• Solid state logic
• Greater life for heaters.
• On screen alarm and ready supply gets cut off when
• a. There is no air supply.
• b. Limit switch for sensing the bottom position of die gets operated without air supply.
• MCB & ELCB for more protection.
• Easy to use material placement gauges.
• Accurate Die Levelling System.
• Filter Regulator Lubricator Unit (FRL).
• Up and Down Speed Controls.
• Operator Friendly Control Systems.
Delete the features comprising of Salient features and controls.
GENERAL SPECIFICATIONS
SPECIFICATION | VWPP1P | VWPP1PH |
---|---|---|
Electric System | 230V,50Hz,Single Phase AC Supply | 415V,50Hz,Three Phase AC Supply |
Weld Timer | 0-10sec | 0-10sec |
Dimensions (H)x(W)x(D) | 62" x 27" x 36" | 62" x 27" x 36" |
Weight | 350Kgs | 475Kgs |
Press | Pneumatic | Hydraulic |
Control Logic | PLC Based | PLC Based |
Note: Due to continuous up gradation specifications are bound to change without prior notice.
