VWPP4ST

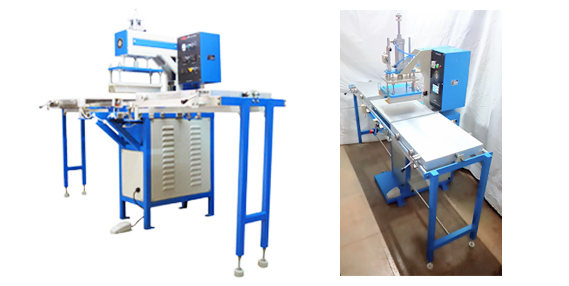

This specially customized unique machine is a combination of PP Spine Welding Machine with shuttle trays. The label is placed along with the spine and the output is a neat weld at a single stroke. This eliminates the tedious job of inserting the label after the seal thereby increasing the production. The Shuttle tray system again optimises productivity. Presence of gauges on the left and right slide-in trays facilitates accurate positioning and gives a classic finished look. A heavy duty pneumatic press provides the necessary pressure.
Spine Welding Shuttle Tray with slide left/right trays that facilitate more production. This basic PLC based model provides consistent production. With lesser breakdown time the machine is nearly maintenance free.
Applications:To seal thin films along with the label placed on the file back
GENERAL SPECIFICATIONS
| SPECIFICATION | VWPP4ST |
|---|---|
| Electric System | 230 V Single Phase AC Supply |
| Sealing Timer | 0-10sec |
| Cooling Timer | 0-10sec |
| Dimensions (H)x(W)x(D) | 53” x 80” x 34” |
| Weight | 310Kgs |
| Press | Pneumatic |
Note: Due to continuous upgradation specifications are bound to change without prior notice.
FEATURES
| Salient Features | Controls |
|---|---|
| Solid State Control Logic | Pilot Lamps for Indication |
| Easy to use material placement gauges | Electronically Operated Timers |
| Accurate Die Leveling System | Digital Production Cycle Counter |
| AC Control Circuit Breaker | Highly Accurate Digital Temperature Controller |
| Operator Friendly Control Systems | Filter Regulator Lubricator Unit (FRL) |
| Plug in Timers | Up and Down Speed Controls |
